As Heard on
Fender® American Vintage Stratocaster® guitar

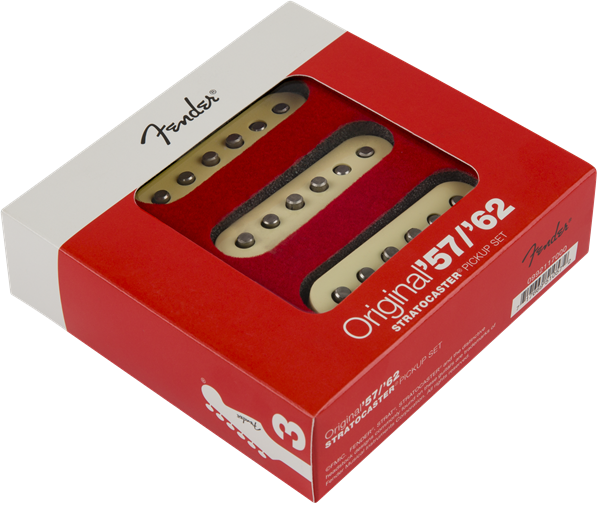

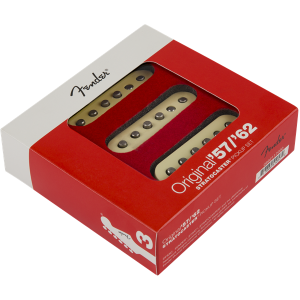

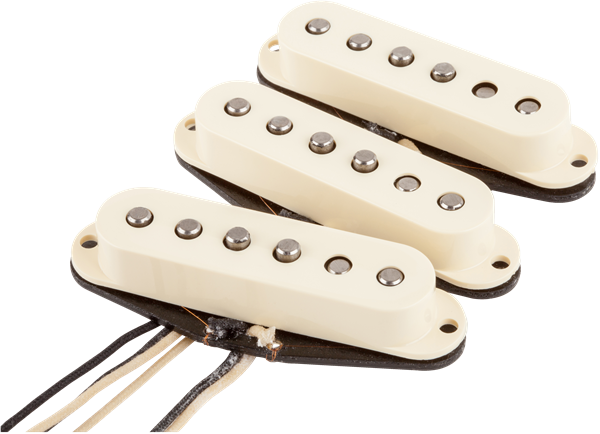

Fender Original ’57/’62 Strat® single-coil pickups are reverse-engineered from a 1963 Stratocaster guitar. These pickups deliver vintage-Strat sound, feel and vibe, with glistening highs and warm lows.

Tonal Characteristics
Formvar magnet wire adds brightness and glassiness
Staggered hand-beveled polepieces balance volume and output across every string
Alnico 5 magnets add more focus and enhanced dynamics
Product Details

Cloth wiring and fiber bobbin construction
Available with aged white pickup covers
Included Components

Fender Original ’57/’62 Strat pickups come with all parts needed for installation, including:

Mounting screws
Pickup height adjustment tubing
Wiring diagram
Output Rating (Bass/Mid/Treble)

Neck: 5/4/6
Middle: 5/4/6
Bridge: 5/4/6
Other Specifications

DC Resistance

Neck: 5.6k ohms
Middle: 5.6k ohms
Bridge: 5.6k ohms
