CARATTERISTICHE TECNICHE:

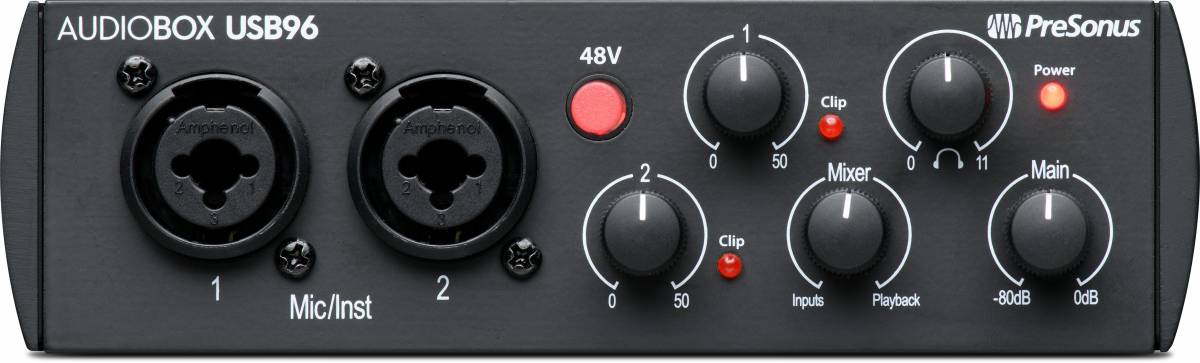

2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
2 combo mic/instrument inputs
Individual channel-trim controls with 0 to +35 dBu mic gain range
48V phantom power for condenser microphones
Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
Headphone jack with level control
Main-output level control
LED clip indicator for each channel

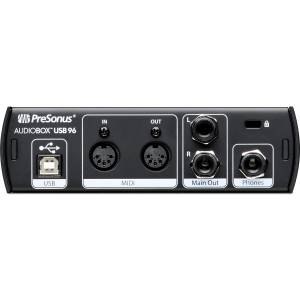

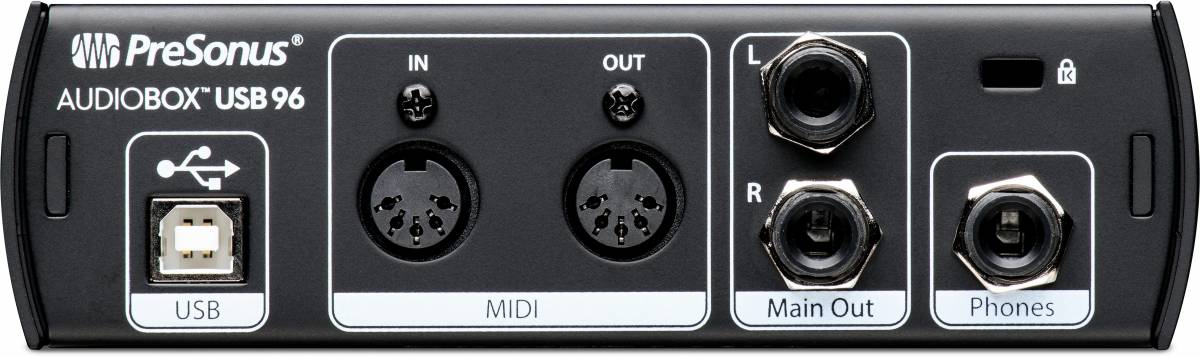

Input/Output


1 USB 2.0 port
2 combo XLR/¼” mic/instrument inputs
2 balanced ¼” main (L/R) line outputs
1 stereo ¼” headphone output
MIDI in/out

Digitalia


24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
Professional-grade A/D/A converters (+105 dBu dynamic range)
Zero-latency monitoring via internal mixer
Compatible with most Mac® and Windows® recording software

Included Software

Studio One® 3 Artist

Physical

1/3U rack-mountable (with optional 3UMR rack-mounting system)
Road-rugged construction with all-metal chassis and metal knobs
Weighs just 5 lbs (2.3 kg)
Powered via USB bus—no wall wart!




SPECIFICHE TECNICHE:


MICROPHONE PREAMP

Type XLR Female Balanced
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Input Impedance (Balanced) 1200?
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range (± 1 dB) +10 dB to 55 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) +48 VDC
INSTRUMENT INPUT

Type ¼" TS Female Unbalanced
Input Impedance 0.5 M?
LINE OUTPUTS

Type ¼" Balanced
Output Impedance 51?
HEADPHONE OUTPUT

Type ¼" TRS Active Stereo
Maximum Output 60 mW/Ch @ 60? Load
Frequency Response (±1.0 dB) 20 Hz - 30 kHz
MIDI I/O

Type Dual 5-pin Female DIN
DIGITAL AUDIO

ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
Bit Depth 24
Reference Level for 0 dBFS +4 dBu
Internal Sample Frequency Selections (kHz) 44.1, 48, 88.2, 96
Power USB 2.0 bus-powered
PHYSICAL

Dimensions 1/3U (steel chassis)
Height 5.5” (139.7 mm)
Depth 1.75" (44.45 mm)
Width 5.5” (139.7 mm)
Weight 5 lbs (2.27 kg)
